HM B205mini delivers a 1x1 software defined radio/cognitive radio in the size of a business card. With a wide frequency range from 70 MHz to 6 GHz and a user-programmable Xilinx Spartan-6 FPGA, this flexible and compact platform is ideal for both hobbyist and OEM applications. The RF front end uses the Analog Devices AD9364 RFIC transceiver with 56 MHz of instantaneous bandwidth. The board is bus-powered by a high-speed USB 3.0 connection for streaming data to the host computer. HM B205mini also includes connectors for GPIO, JTAG, and synchronization with a 10 MHz clock reference or PPS time reference input signal. There are three configurations in this product family with options for a larger or industrial-grade FPGA. The USRP Hardware Driver (UHD) software API supports all USRP products and enables users to efficiently develop applications then seamlessly transition designs between platforms as requirements expand.
Product Details
Product Overview
HM B205mini delivers a 1*1 software defined radio/cognitive radio in the size of a business card. With a wide frequency range from 70 MHz to 6 GHz and a user-programmable Xilinx Spartan-6 FPGA, this flexible and compact platform is ideal for both hobbyist and OEM applications. The RF front end uses the Analog Devices AD9364 RFIC transceiver with 56 MHz of instantaneous bandwidth. The board is bus-powered by a high-speed USB 3.0 connection for streaming data to the host computer. HM B205mini also includes connectors for GPIO, JTAG, and synchronization with a 10 MHz clock reference or PPS time reference input signal. There are three configurations in this product family with options for a larger or industrial-grade FPGA. The USRP Hardware Driver (UHD) software API supports all USRP products and enables users to efficiently develop applications then seamlessly transition designs between platforms as requirements expand.
2. Applications
2.1 Hobbyists and New Users
The powerful UHD software API reduces the learning curve and provides a quick start experience for new users and long-time hobbyists interested in AM/FM applications, cellular communication, and algorithm exploration.
2.2 Wireless Signal Discovery and Analysis
The content-rich GNU Radio community provides a wide range of tools and algorithms that enable discovery and analysis of air interface protocols.
2.3 OEM and Integration
The compact form factor and cost-effective design of the B200mini Series make it ideal for integration into larger systems for prototyping and deployment.
3. Features
3.1 Device Variants

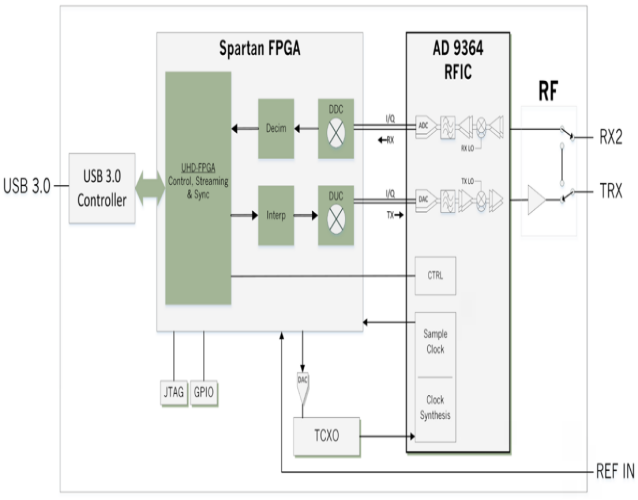

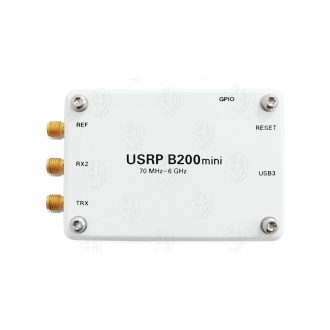

B200mini (LX75 C-Grade FPGA)
B200mini-i (LX75 I-Grade FPGA)
B205mini-i (LX150 I-Grade FPGA)
3.2 RF Capabilities
1 TX, 1 RX
70 MHz to 6 GHz frequency range
Up to 56 MHz bandwidth
3.3 Software
UHD version 3.9.2 or later1
GNU Radio
C/C++
Python
3.4 High-Speed Interface and Power
USB 3.0
USB powered
3.5 Synchronization
10 MHz clock reference or PPS time reference
3.6 Peripherals
GPIO
JTAG
4. Specifications
RF Performance | |
IIP3 (at typical NF) | -20 dBm |
Power Output | > 10 dBm |
Receive Noise Figure | < 8 dB |
Conversion and Clock Performance | |
ADC Sample Rate (Max.) | 61.44 MS/s |
ADC Resolution | 12 bits |
DAC Sample Rate (Max.) | 61.44 MS/s |
DAC Resolution | 12 bits |
Host Sample Rate (16b) | 61.44 MS/s |
Frequency Accuracy | ±2.0 ppm |
Power | |
USB Power | 5 V |
Physical | |
Dimensions | 83.3 × 50.8 × 8.4 mm |
Weight | 24.0 g |
Operating Temperature Range | |
B200mini board only | 0 - 40 °C |
B200mini-i board only | 0 - 45 °C |
B205mini-i board only | 0 - 45 °C |
B200mini with enclosure | -20 - 60 °C |
B200mini-i with enclosure | -40 - 75 °C |
B205mini-i with enclosure | -40 - 75 °C |
